Scanwatch | Horizon
Dive into
deep health insights
Special edition
Iconic codes of luxury
ScanWatch Horizon features all the cutting edge tech of the original edition outfitted with notable design and material upgrades including a rotating bezel, Luminova indexes and 10 ATM water resistance.
Made to last
Durable luxury
ScanWatch Horizon is the most durable watch ever created by WITHINGS.
- 5-year warranty
- 30 days battery life
- Flat Sapphire Glass
- 316L Stainless Steel Case
Clinically validated
Heart Health Monitoring
Record an ECG at any time thanks to a mirror-polished serrated bezel that acts as an electrode.
Back
Clinically validated
Heart Health Monitoring
Record an ECG at any time thanks to a mirror-polished serrated bezel that acts as an electrode.
Optical heart rate sensor
Day and night the optical heart rate sensor keeps tabs on heart rate but conserves battery life by activating periodically around the clock. Continuous heart rate is activated and recorded when using workout mode.
Proactive rhythm monitoring
ScanWatch monitors heartbeat automatically so it can send notifications if irregular rhythms are detected it will then advise the wearer to record an electrocardiogram (ECG).
Medical-grade SpO2
To deliver the percentage of blood oxygen, or SpO2, ScanWatch uses a multi-wavelength PPG sensor to emit and measure red and infrared reflections of blood vessels in the wrist. Normal SpO2 values vary between 90 and 100%, and readings appear on the watch and in the app.
ECG readings
An ECG is the best way to detect atrial fibrillation (AFib), a highly prevalent heart arrhythmia. AFib often goes undiagnosed because it can show no symptoms and/or not be present during doctor’s visits because the episodes can be intermittent.
Share with a doctor
All heart health data is compiled in the app and can be easily shared with a doctor, health coach, or loved one with a few taps via the Health Report feature.
Sport sessions
Activity Tracking
ScanWatch Horizon seamlessly tracks all your activities, including intense sport sessions. Smart detection and connected GPS give you precise insights.
Water-resistant to 10 ATM (100 m)
Back
Sport sessions
Activity tracking
ScanWatch Horizon seamlessly tracks all your activities, including intense sport sessions. Smart detection and connected GPS give you precise insights.
Step Tracking
With the activity subdial always available at a glance, ScanWatch helps you know where you stand with your daily step goal. A 3-axis accelerometer and a decade of algorithm improvements allow you to enjoy the most accurate results.
Automatic Activity detection
Take a swim, commute by bike, or go for a run—ScanWatch will automatically recognize your activity and log it in the Health Mate app. Get credit for all your moves with no button to press.
Connected GPS
Map your workout sessions and enjoy distance, elevation, and path with Connected GPS.
Workout Mode
Easily activate workout mode right on your wrist by choosing from over 30 sports. This shows your workout duration, and logs heart rate and movement continuously.
In-depth analytics
Advanced Sleep Tracking
ScanWatch Horizon collects numerous data points to measure Sleep cycles, detect breathing disturbances and then calculates your overall Sleep Score—automatically.
Back
Sleep Cycles
ScanWatch tracks your sleep cycles (light and deep), duration of sleep, time to be asleep and wake up as well as interruptions, and logs it in the Health Mate app so you can view your trends.

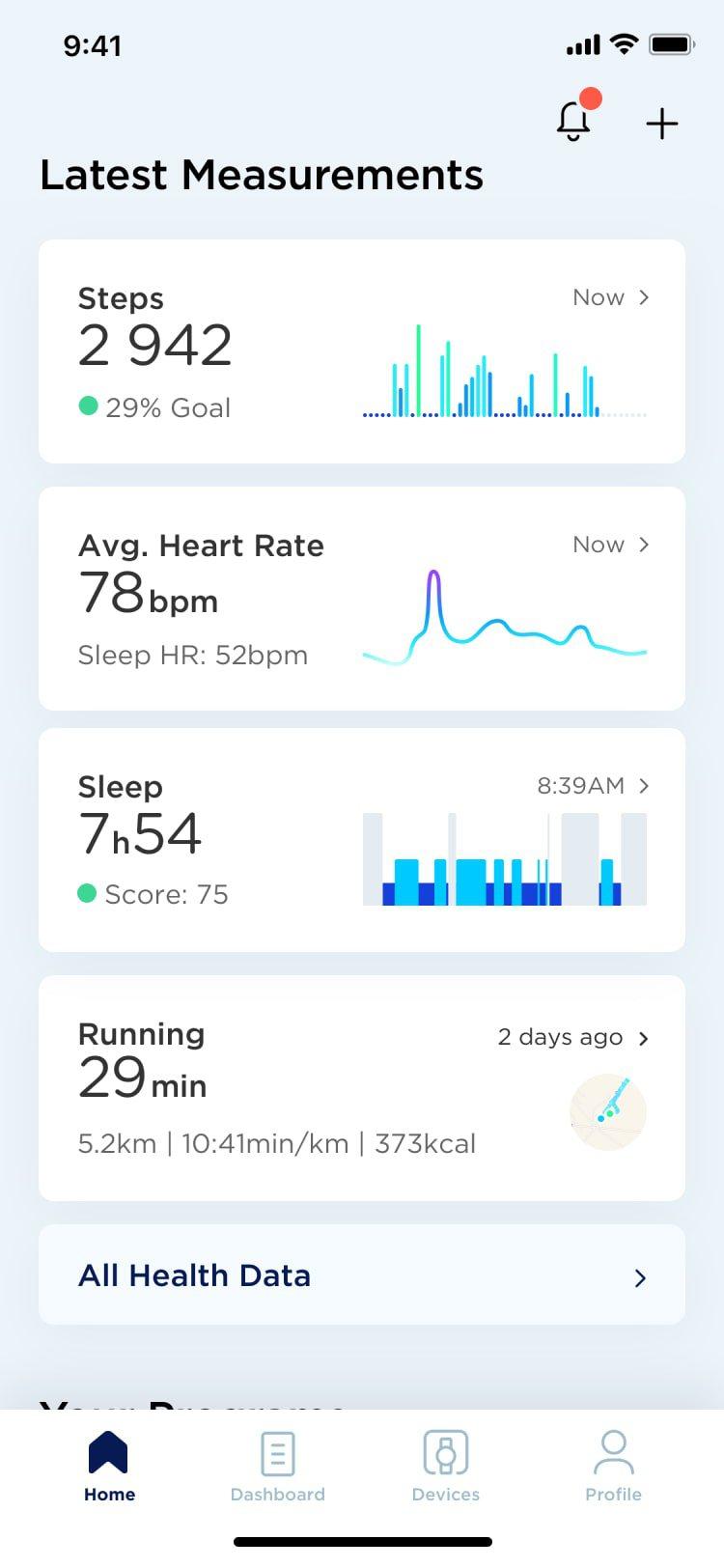

healthmate app view
11:49PM
7:45AM
7h54
Awake
Light
Deep
Sleep Score
Our exclusive algorithm automatically scores your night based on sleep cycles, duration, regularity and interruptions.
healthmate app view
75
Smart Wake-up
Because ScanWatch knows if you are in a light or deep stage, it can choose the best time to wake you up according to your schedule. You simply set a wake-up time in the app, and ScanWatch will wake you with a light vibration.
healthmate app view
7:00AM
8:00AM
7:45AM
Respiratory Scan
In addition to analyzing sleep, activating the Respiratory Scan can detect breathing disturbances via the PPG sensor and the accelerometer based on an analysis of blood oxygen levels, heart rate, motion and breathing rate.
Timeless tech
Simple & smart
Companion app
Get insights, advice and more on your iOS or Android device.
Interchangeable bands
Swap instantly between the Oyster Metal and Fluoroelastomer Sport band (included), or change it up with your own wristband.
Digital crown
The new pressable crown enables easy selection and the ability to scroll through features.
Smart Notifications
ScanWatch will vibrate and display a preview of smartphone notifications for the apps you want to hear from.
Developed with cardiologists. Included in several validation studies conducted at renowned hospitals and research institutes.
ScanWatch Horizon
Hybrid Smartwatch with ECG, Heart Rate & Oximeter
Compatible with iOS & Android
Metrics tracked
Metrics
Heart rate: beats per minute
Breathing disturbances: detection via oxygen saturation
Electrocardiogram: tracing of a 30-seconds ECG recording on a millimetric grid
Oxygen saturation level (medical-grade SpO2)
Walking and running: steps, distance, calories, based on user’s profile for high precision
Calories: metabolic calories and total calories expenditure
Running: automatically detected, in-app daily recap of duration and distance
Swimming: automatically detected, in-app recap with duration and calories burned
Sleep: deep and light sleep phases, irregular heartbeat detection, sleep interruptions
Fitness Level: assessment via VO2Max estimation
Elevation: meters and floors climbed
Connectivity
App
Bluetooth
Bluetooth Low Energy - to sync with Health Mate
Bluetooth connection with location settings permission must be enabled to use the Connected GPS feature
Requirements
ScanWatch can be installed on a smartphone or a tablet, via the Health Mate app available on iOS (iOS 12 and higher) and Android (8.0 and higher).
Cannot be set up from a computer
Device
Dimensions
43mm model: 43mm diameter (1.7’’),13,28mm thickness (0.52’’),20mm wristband width (0.78’’), 72g (watch only)
Display
Analog dial with hands for hours and minutes. Subdial displays progress toward daily activity goal in percentage. The PMOLED screen displays SpO2, irregular rhythm and smartphone notifications, heart rate, steps, floors climbed, distance, calories, activities, and settings.
Workout mode displays timer and heart rate(continuous tracking).
Clock menu with alarm, stopwatch and timer.
Notifications display previews of incoming calls, text messages, calendar events and 100+ apps.
Battery life
Single battery charge lasts up to 30 days in normal use
+20 additional days in power reserve mode (time and activity tracking only)
Charging time
Approximately 2 hours to 100%. About 1 hour to 80%
Materials
Comes with a stainless steel case featuring a rotating stainless steel bezel, a sunray brass dial with applied stainless steel indexes with luminous coating, brass hands with luminous coating, sapphire glass, a stainless steel wristband, and a durable and water-resistant fluoroelastomer (FKM) wristband
Conditions of use
Water resistant up to 330 feet deep (100 m, 10 ATM)
Operating temperature: -10°C to 45°C (14°F to 113°)
Storage temperature: -20°C to 85°C (4°F to 185°)
Pacemakers and implantable cardioverter defibrillators (ICD) can make ECG recordings inconclusive.
Sensors
Exclusive multi-wavelength PPG heart rate/SpO2 sensor
Stainless steel electrodes
High precision MEMS 3-axis accelerometer
ScanWatch Horizon
Oyster Metal Link wristband
Additional fluoroelastomer (FKM) wristband
Magnetic charging cable
Quick start guide (English, French, German, Italian, Spanish)
Band toolkit to adjust metal link wristband: pin punch, hammer, and holder
